2026 ONYX LN2 Gas Delivery Monitoring Report

Phase 1: Winter/Spring Audit (Completed)

Duration: December 31, 2025 – April 3, 2026

Metric	Ground Truth (Totalizer)	Logger Integration
Start (12/31/25)	0 SCF	0 SCF
Mid-Point (01/12/26)	105,935 SCF	105,274 SCF
End (04/03/26)	923,190 SCF	931,292 SCF
Variance	-0.87% (Logger High)

Audit Notes: The 0.87% variance is well within the ±1% factory specification. A slight "over-counting" drift was observed as ambient temperatures rose from 28°F in January to 62°F in March. Data resolution was found to be 4.5 minutes due to an interval setting error in Phase 1.

Phase 1 Usage Analysis

Usage Trends: Base load remains steady near 386 SCFH during off-hours and weekends. Weekday usage reliably ramps up starting at 6:00 AM, peaking around 1:00 PM (~481 SCFH average), and tapers off near 7:00 PM.

Peak Usage Recorded: 1062.50 SCFH on Feb 27, 2026 at 11:16 AM.
Weekday Average: 430.76 SCFH
Weekend Average: 386.53 SCFH

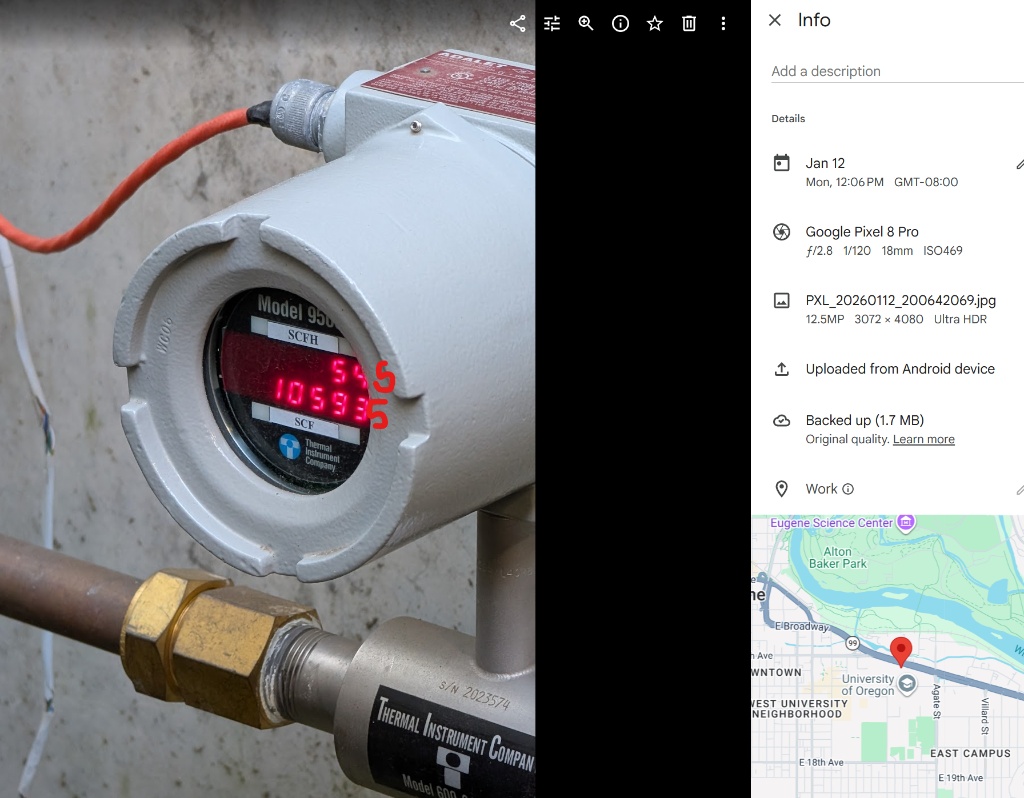

Jan 12 Calibration Point — Jan 12 Snapshot

Phase 1 Assets: Raw CSV Data Binary .DAT File Initial Strategy PDF

Phase 2: Spring/Summer Audit (Completed)

Duration: April 3, 2026 – June 30, 2026 (87 days)

Interval: 240 Seconds / 4 Minutes (Fixed from 270s in Phase 1)
Scale: 4-20mA = 0-10,000 SCFH
Maintenance: New CR2032 Coin Battery Installed
Records Collected: 31,598 total (31,566 clean; 32 negative-flow readings excluded)

Metric	Phase 2 Result
Start	April 3, 2026 @ 3:42 PM
End	June 30, 2026 @ 10:10 AM
Logger Integration (Total SCF)	783,071 SCF
Monthly Breakdown	April: 250,687 SCF \| May: 279,446 SCF \| June: 252,938 SCF
Average Flow Rate	372.11 SCFH
Peak Flow Rate	812.50 SCFH (June 24, 2026 @ 2:10 PM)
Minimum Flow Rate	0.00 SCFH
Std. Deviation	63.67 SCFH
Weekday Average	385.47 SCFH
Weekend Average	340.41 SCFH
Avg. Ambient Temp (Chan 1)	60.6°F
Peak Ambient Temp (Chan 1)	92.3°F (June 15, 2026 @ 5:02 PM)

Phase 2 Gas Consumption Over Time

Phase 2 Usage Analysis

Usage Trends: Overnight base load averages ~347 SCFH. Weekday demand climbs from 8:00 AM, peaking around 1:00 PM (~418 SCFH average), and tapers off by 7:00 PM. Summer usage is noticeably lower than Phase 1 winter/spring values — weekday average is down 10.5% and peak flow is 23.5% lower, consistent with lower cryogenic demand in warmer months.

Peak Usage Recorded: 812.50 SCFH on June 24, 2026 at 2:10 PM
Weekday Average: 385.47 SCFH
Weekend Average: 340.41 SCFH
Monthly Totals: April 250,687 SCF | May 279,446 SCF | June 252,938 SCF
Peak Ramp: Usage peaks at 1:00 PM (417.86 SCFH avg) vs. 1:00 PM in Phase 1

Phase 1 vs. Phase 2 Comparison

Metric	Phase 1 (Winter/Spring)	Phase 2 (Spring/Summer)	Change
Duration	Dec 31 – Apr 3 (93 days)	Apr 3 – Jun 30 (87 days)	—
Peak Flow Rate	1,062.50 SCFH	812.50 SCFH	−23.5%
Weekday Average	430.76 SCFH	385.47 SCFH	−10.5%
Weekend Average	386.53 SCFH	340.41 SCFH	−11.9%
Data Interval	4.5 min (error)	4 min (corrected)	✓ Fixed

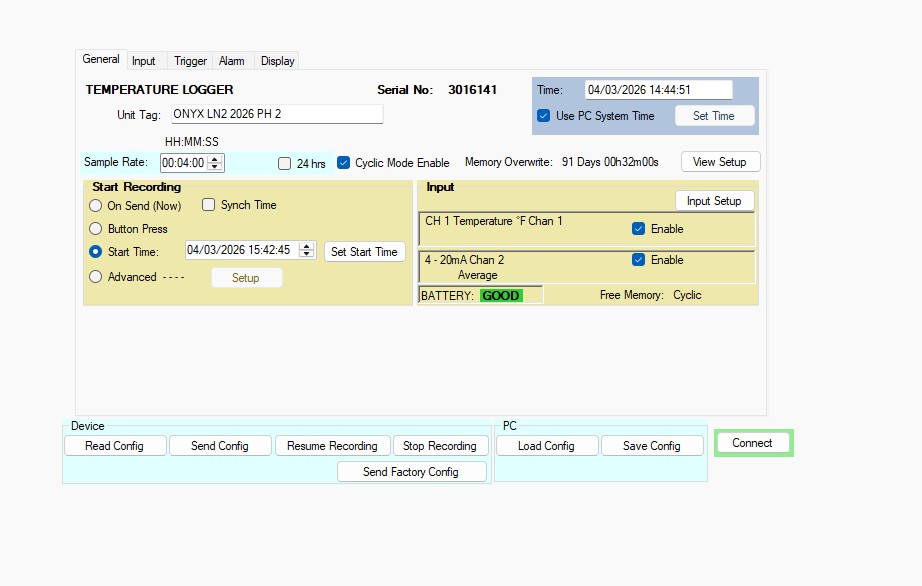

Phase 2 Software Settings — Verified 4m Interval

Phase 2 Assets: Raw CSV Data Binary .DAT File Configuration XML Scaling Documentation

✅ Data Retrieved June 30, 2026 — Phase 2 Complete. Logger reset for Phase 3.
