Sound



Name: Sound Resonance: Organ Pipe

Location:  L314

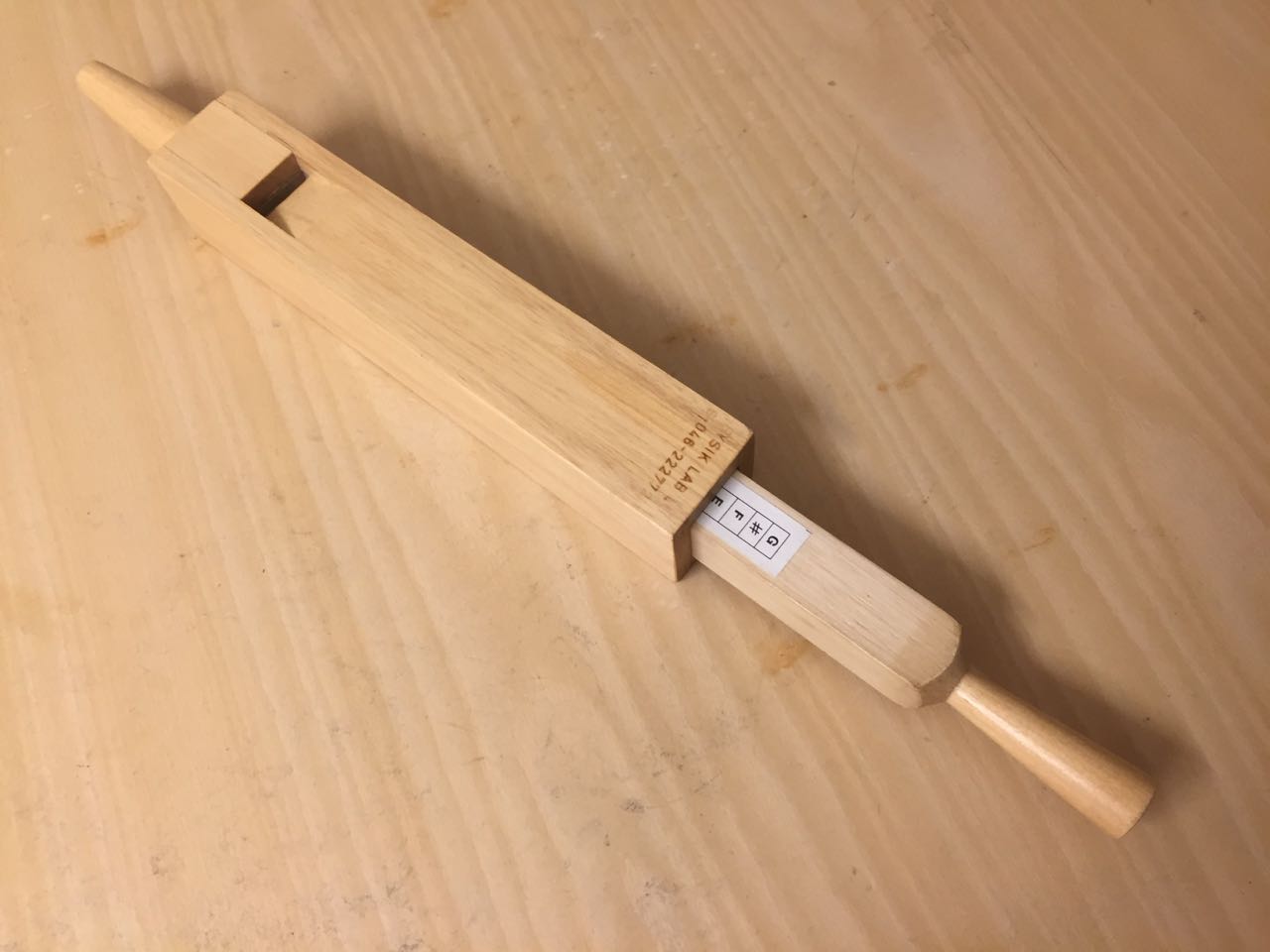

Equipment:  Organ Flute with Slide











Suggested Presentation:  Organ Pipe with removable slide.  3 demos

  1. Open Pipe resonance; Blow into the pipe and hear the fundamental. Blow harder and hear the 2nd Harmonic.
  2. Cover the end of the pipe with your hand and the new fundamental will be one octave down.  An air pipe closed at one end.  Blow harder and you hear the third harmonic.  Closed on one end you will only hear odd harmonics.
  3. Put in the sliding bar and display how the pitch depends on the length of the column.





A great demo for before or after deriving standing wave conditions for open and closed tubes.



Discussion Clicker Question:  A tube closed on one end has a frequency of 220 Hz.  What is the frequency of the next possible harmonic?



  1. 110Hz B) 330Hz C) 440Hz D) 660 Hz E)880Hz
